For unrebated residential doors with 21mm reduced hinge frame part up to 40kg.
Due to the technical nature of these products, please speak to a member of our Sales Department for more information and to purchase.
Features
- Reduced hinge frame part 21 mm
- Completely concealed hinge system for timber and aluminium frames
- For unrebated residential doors
- 3D adjustment (side +/- 1.5 mm, height +/- 2.5 mm, compression +/- 1.0 mm)
- Material zamak / acetal
- Load capacity 40kg - refers to the use of 2 hinges per door leaf (900 x 2100 mm)
- Overall length 110mm
- Width (door part) 24mm
- Width (frame part) 24mm
- Cutter diameter 16mm
- Collar ring diameter 27mm
- Opening angle 180°
- Unrebated

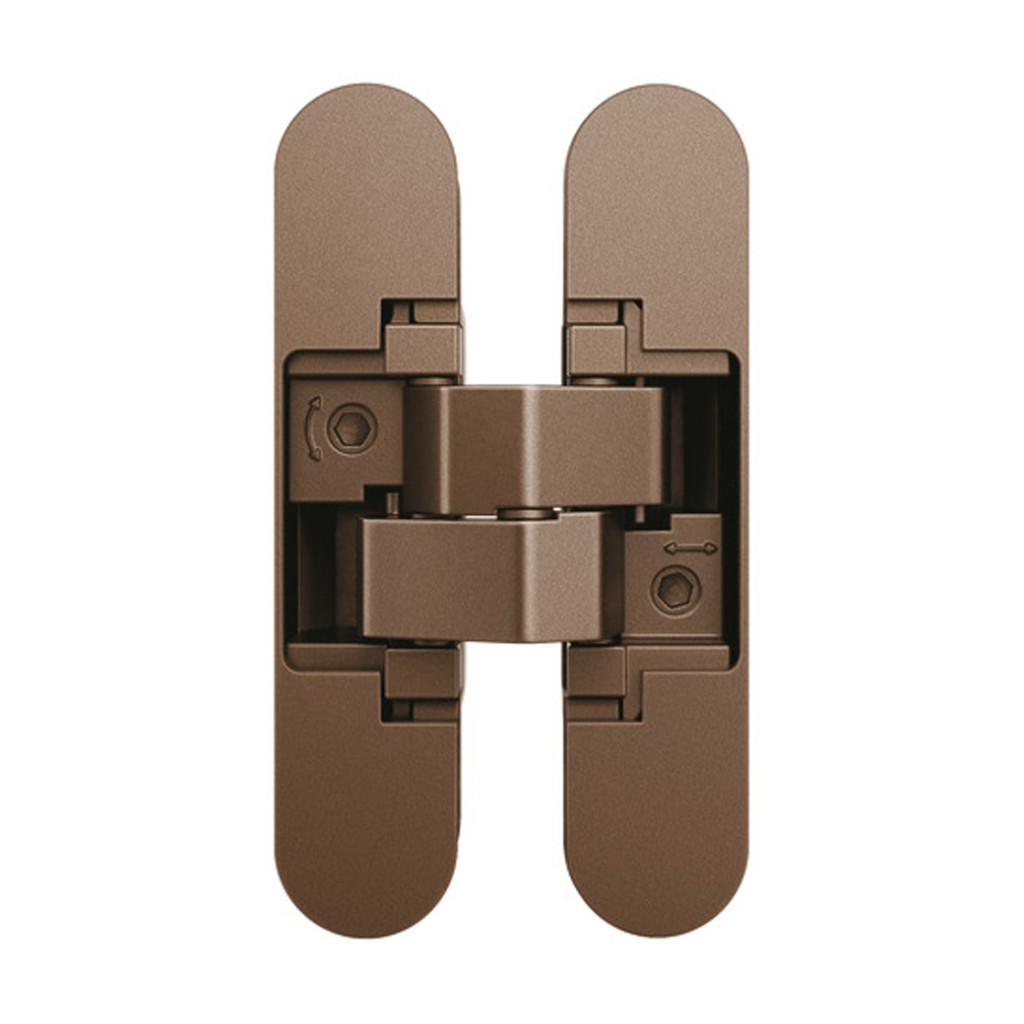

Simonwerk Anselmi AN 150 3D Concealed Hinges
