EN 1154 Product Classifications
Fig 1
4
8
3
4
3
1
3
Fig 66
3
8
3
1
1
3

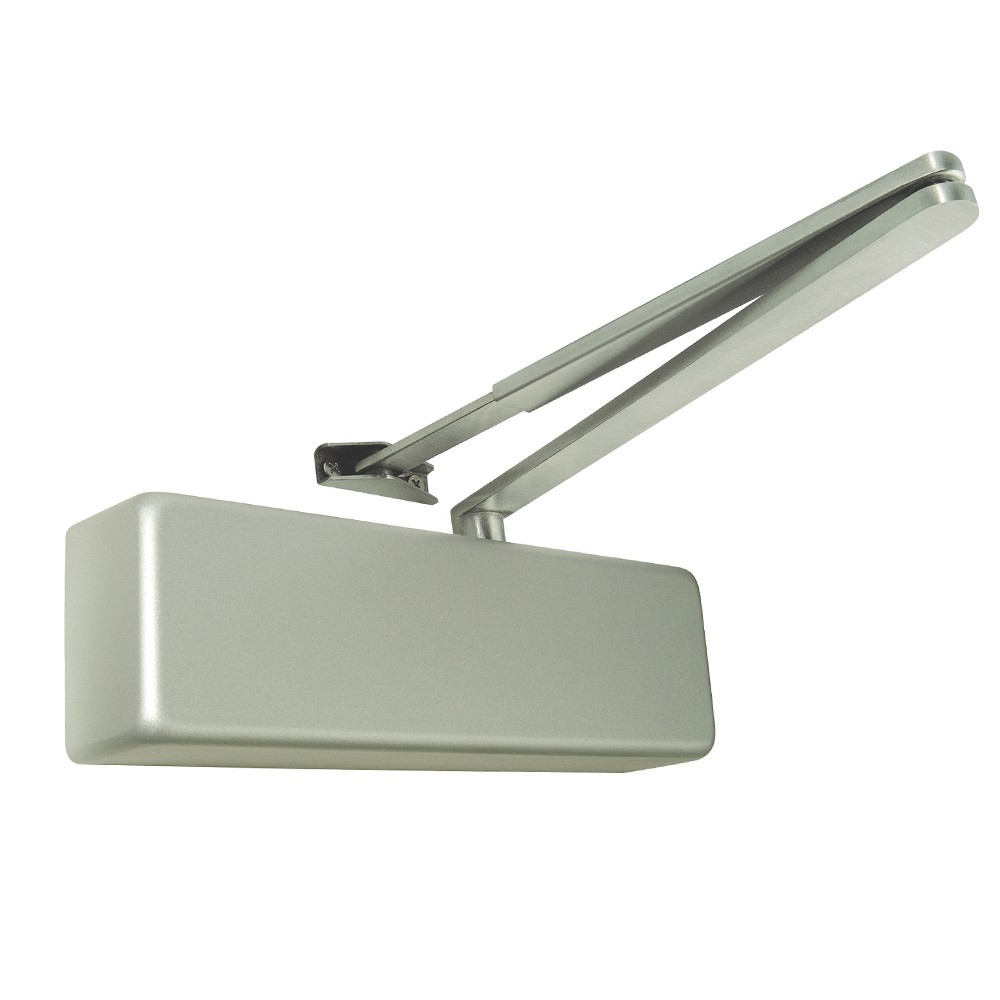

Rutland TS.3204 Medium Duty Adjustable Power Universal Door Closer
FROM £33.83 Each Inc. VAT
£28.19 Ex. VAT
The Rutland TS.3204 Door Closer is ideal for mid-range contracts, it can be fitted to almost all common door types. All units come with with soft line cover, PA bracket, flatbar armset and back check as standard unless otherwise indicated.
Please note: only available for online purchases.
Features
- Maximum door width 950-1100mm / weight 60kg-80kg
- Power size EN 3-4 (Fig 1) EN 3 (Fig 66)
- Adjustable power by template EN3-4
- Universal application – can be fitted in Standard, Parallel arm or Transom fitting position
- Back check TS.3204BC
- Fire Tested to BS EN 1634 up to 120 mins
- Certifire FD120 and IFC FD60 (not applicable for back check versions)
- UL10C and UL228
- Rut Lock
- DoP 32040000CPR101218
- Corrosion Grade 3 - recommended for internal use
- Dimensions (including cover) W250 x H66 x D43mm
- 20 year mechanical guarantee
- Adjustable delayed action feature NOT to be operational when fitted to a fire door
- UKCA marked & CE marked
Standards
Rutland TS.3204 Medium Duty Adjustable Power Universal Door Closer
£44.45
£37.04 Ex. VAT
Each
Rutland TS.3204 Medium Duty Adjustable Power Universal Door Closer
£33.83
£28.19 Ex. VAT
Each
Rutland TS.3204 Medium Duty Adjustable Power Universal Door Closer
£37.38
£31.15 Ex. VAT
Each
Rutland TS.3204 Medium Duty Adjustable Power Universal Door Closer
£44.45
£37.04 Ex. VAT
Each
Rutland TS.3204 Medium Duty Adjustable Power Universal Door Closer
£44.45
£37.04 Ex. VAT
Each
Drop plate (includes fixings)
£25.79
£21.49 Ex. VAT
Each
Fixing pack
£3.14
£2.62 Ex. VAT
Each
