Raven RP99Si Heavy Duty Adjustable Automatic Door Bottom Seal – Satin Anodised Aluminium

This seal is spring loaded to lift clear of the floor when the door is opened. Acoustically designed, with a silicon gasket for medium temperature smoke applications. Operated automatically by pressure on the door jamb or stop by its adjustable strike. Includes aluminium cover for concealed fixing for face mounted installation.

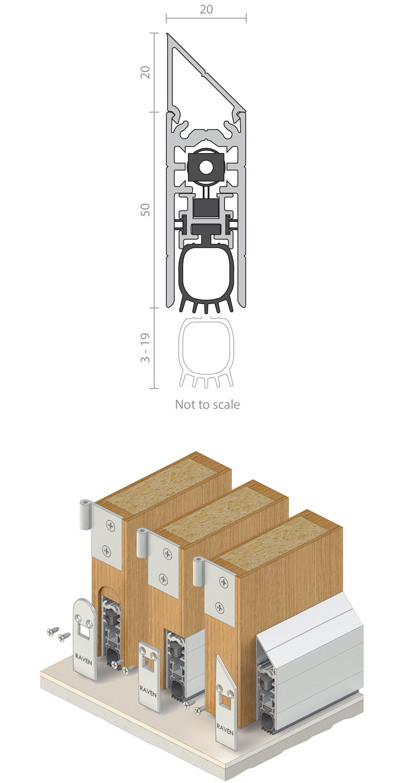

Location: Face mounted, semi-morticed or fully morticed into single and double solid core butt hinged doors. Can be fitted into the bottom rail of metal doors by the fabricator. Minimum door thickness of 40mm for semi and fully morticed installations. For double door fully morticed installations, plain meeting stiles required.
Min/Max Gap: 3mm to 19mm.
Finish: Satin clear (silver).
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied. Colour matched escutcheon plates and face mount aluminium angle included.
Seal: Black Silicon Rubber.
Sizes: 1220mm, 1070mm, 920mm, 820mm, 720mm, 600mm, 380mm to 295mm (min). Seals can be cut back to exact size.

Features

  • Cert. GVYI.R37913
  • Acoustic: AUS/NZ: NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
  • Fire: AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1. UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/60 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • Smoke: NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
  • Energy: NCC Pt. 3.12.3.3 & J3.4.
  • Design for Access and Mobility
  • High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
  • Durability: Tested to over 1,000,000 operating cycles without failure.
  • Insects/Vermin AS4674, 2.1.5(iv), 2.1.7.
  • Patented.

Finishes

  • SAA

Standards

Raven RP99Si Heavy Duty Adjustable Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5307
£42.20 Ex VAT
Each
VAT
Raven RP99Si Heavy Duty Adjustable Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5308
£48.92 Ex VAT
Each
VAT
Raven RP99Si Heavy Duty Adjustable Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5309
£65.30 Ex VAT
Each
VAT
Raven RP99Si Heavy Duty Adjustable Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5310
£75.02 Ex VAT
Each
VAT
Raven RP99Si Heavy Duty Adjustable Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5311
£80.54 Ex VAT
Each
VAT
Raven RP99Si Heavy Duty Adjustable Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5312
£89.87 Ex VAT
Each
VAT
Raven RP99Si Heavy Duty Adjustable Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5313
£94.78 Ex VAT
Each
VAT
