Raven RP87HSi Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium

This seal is designed for clean room and health care facilities, this seal has an easy wipe clean design where the smooth silicon sealing gasket also contains an antimicrobial additive for maximum protection against surface bacteria.

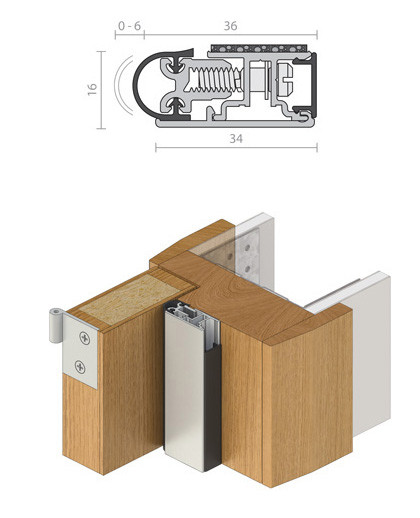

This seal is an effective door stop seal for noise, light and medium temperature smoke. It can be butt jointed for a neatly finished continuous seal, replacing the conventional doorstop on metal or timber framed doors. With tamper proof concealed fixings, the seal utilises independently adjustable screws to achieve up to 6mm sealing adjustment for maximum noise control. The silicon seal only requires normal door closing force. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

Location: Head and jambs of single and double butt hinged doors.
Min/max gap: 0mm to 6mm.
Finish: Satin anodised aluminium.
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
Seal: Black silicon rubber.
Sizes: Available in door set sizes.

Features

  • Acoustic: AUS/NZ: NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
  • Fire: AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1. UK/EU: Approved Document B.
  • FRL & FRR-/240/30 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • Smoke: NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
  • Energy: NCC Pt. 3.12.3.3 & J3.4.

Finishes

  • SAA

Standards

Raven RP87HSi Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5509
£223.99 Ex VAT
Per Set
VAT
Raven RP87HSi Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5510
£277.53 Ex VAT
Per Set
VAT
