Raven RP38Si Heavy Duty Automatic Door Bottom Seal – Satin Anodised Aluminium

This seal is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, it features a silicon gasket for medium temperature smoke and fire door applications. Doubles as a kick plate when semi-morticed. Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.

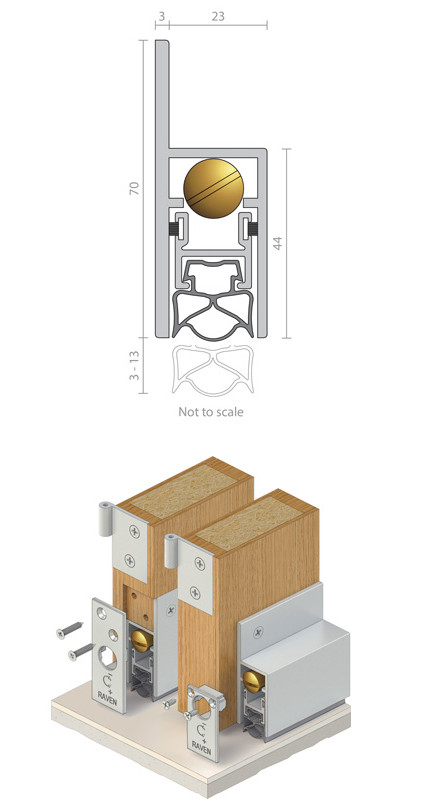

Location: Face mounted or semi-morticed into bottom of single and double butt hinged doors. For semi-mortice minimum door thickness of 50mm for rebated meeting stiles and 40mm for plain meeting stiles is required. Can be face mounted to the bottom of metal doors.
Min/Max Gap: 3mm to 13mm.
Fixing: Satin clear (silver).
Fixing: Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
Seal: Grey Silicon Rubber.
Sizes: 1500mm, 1220mm, 1070mm, 920mm, 610mm, 450mm to 300mm (min). Seals can be cut back to exact size.

Features

  • Cert. GVYI.R37913
  • Acoustic: AUS/NZ: NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
  • Fire: AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1. UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/60 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • Smoke: NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
  • Energy: NCC Pt. 3.12.3.3 & J3.4.
  • High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
  • Durability: Tested to over 1,000,000 operating cycles without failure.
  • Insects/Vermin AS4674, 2.1.5(iv), 2.1.7.
  • Patented, Registered Design.

Finishes

  • SAA

Standards

Raven RP38Si Heavy Duty Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5301
£63.66 Ex VAT
Each
VAT
Raven RP38Si Heavy Duty Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5302
£73.82 Ex VAT
Each
VAT
Raven RP38Si Heavy Duty Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5303
£93.64 Ex VAT
Each
VAT
Raven RP38Si Heavy Duty Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5304
£103.91 Ex VAT
Each
VAT
Raven RP38Si Heavy Duty Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5305
£116.10 Ex VAT
Each
VAT
Raven RP38Si Heavy Duty Automatic Door Bottom Seal – Satin Anodised Aluminium
Satin Anodised Aluminium
Product code: FS5306
£136.28 Ex VAT
Each
VAT
