Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium

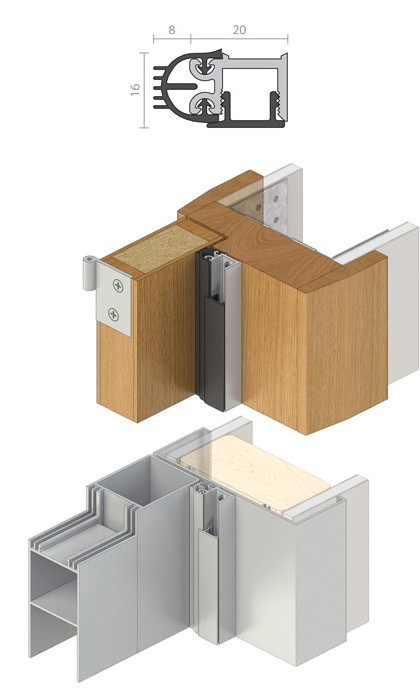

This seal is an effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency.

The seal can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit, it has a tamper resistant, rigid PVC cover strip. Can be used on all four sides of the door to form a bulk head seal. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

Location: Head and jambs of single and double butt hinged doors.
Min/max gap: 0mm to 10mm.
Finish: Satin anodised aluminium
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: Black or light grey silicon rubber.
Sizes: Available in door set sizes.

Features

  • Cert. GVYI.R37913.
  • ANSI/BHMA A156.22.
  • Acoustic: AUS/NZ: NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
  • Fire: AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1. UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/60 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • Smoke: NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
  • Energy: NCC Pt. 3.12.3.3 & J3.4.
  • Registered Design.

Finishes

  • SAA

Standards

Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
£136.53 Ex VAT
Per Set
VAT
Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
£163.13 Ex VAT
Per Set
VAT
Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
£156.24 Ex VAT
Per Set
VAT
Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
£177.89 Ex VAT
Per Set
VAT
Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
£136.53 Ex VAT
Per Set
VAT
Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
£163.13 Ex VAT
Per Set
VAT
Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
£156.24 Ex VAT
Per Set
VAT
Raven RP10Si Heavy Duty Compression Acoustic & Smoke Seal – Satin Anodised Aluminium
£177.89 Ex VAT
Per Set
VAT
