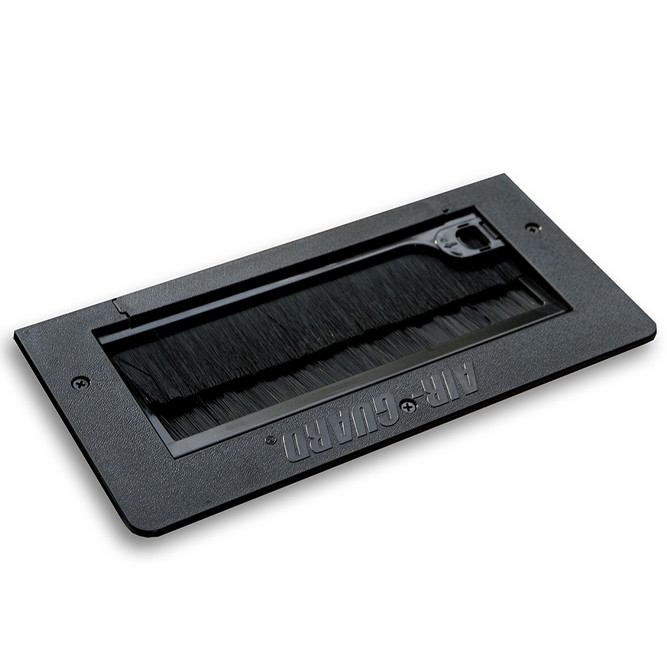

Air-Guard® Rectangular Floor Access Cable Grommet, with flame retardant brush material – 265mm x 115mm cut out

Rectangular grommet designed for raised floor installation. Contains two overlapping brushes for air tight seal, and features a latching removable front section easy cable installation. The unit is relatively narrow which facilitiates the use of shorter bristles which maintain their horizontal alignment and will not wilt over time. Note, long and heavy bristles (over 125mm) are prone to wilting over time thereby creating an air gap opening in the grommet. 2 units can also be installed face to face to form a larger cable way.

Features

  • Overall – 328mm x 162mm
  • Cut out – 265mm x 115mm (centre panel), 265mm x 135mm (edge of panel)
  • Max cable opening – 230mm x 60mm
  • “Better Seal” overlapping brush system
  • Latched removable front edge to facilitate easy cable installation
  • Manufactured from high strength ABS flame retardant materials
  • Brush material rated V0 flame retardant
  • All material RoSH compliant
  • Pack supplied with cutting template and fixing hardware

Finishes

  • BLK
