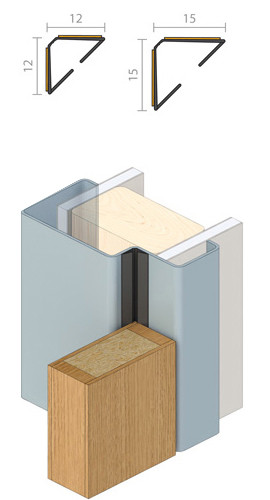

These co-extruded PVC acoustic and smoke seals are discreetly located in the protected corners of rebated timber or steel door and window frames. Can be used in conjunction with door bottom seals.

Location: Around metal or timber rebated frames of single and double butt hinged doors and windows. Min/max gap: 3mm to 5.5mm.
Fixing: Aggressive self adhesive backing tape on both sides of the carrier. Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: Black or White (RP120 only) co-extruded rigid and flexible flame retardant PVC.
Sizes: Available in door set sizes.

Features

  • Cert. GVYI.R37913.
  • Acoustic: AUS/NZ: NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
  • Fire: AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1. UK/EU: Approved Document B. (Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22).
  • FRL & FRR-/240/30 and FD240.
  • Smoke: NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
  • Energy: NCC Pt. 3.12.3.3 & J3.4.

Finishes

  • BLK

  • WHT

Standards

Raven RP120 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals
£25.80 Ex VAT
Per Set
VAT
Raven RP120 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals
£27.57 Ex VAT
Per Set
VAT
Raven RP120 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals
£29.17 Ex VAT
Per Set
VAT
Raven RP120 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals
£32.89 Ex VAT
Per Set
VAT
Raven RP150 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals
£34.09 Ex VAT
Per Set
VAT
Raven RP150 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals
£29.28 Ex VAT
Per Set
VAT
Raven RP120 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals
£25.80 Ex VAT
Per Set
VAT
Raven RP120 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals
£27.57 Ex VAT
Per Set
VAT
Raven RP120 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals – with White seal
£29.17 Ex VAT
Per Set
VAT
Raven RP120 Triangular Co-Extruded PVC Medium Duty Acoustic & Smoke Seals – with White seal
£32.89 Ex VAT
Per Set
VAT
