The MK2 Door Coordinator, also known as a selector, ensures that a pair of double doors will always shut in the correct sequence regardless of which door is opened first. If the double doors do not shut in the correct sequence they will not close in the middle. The MK2 can be used on timber/metal/steel fire and non-fire regulated door sets.

The types of doors MK2s are specified on are:
Fire regulated and non-fire regulated door sets • Rebated Doors • Flush doors with security astragals • Escape doors with a vertical rod device and horizonal rim exit device • Flush doors that are used with a mortice lock/latch • Flush doors with automatic flush bolts

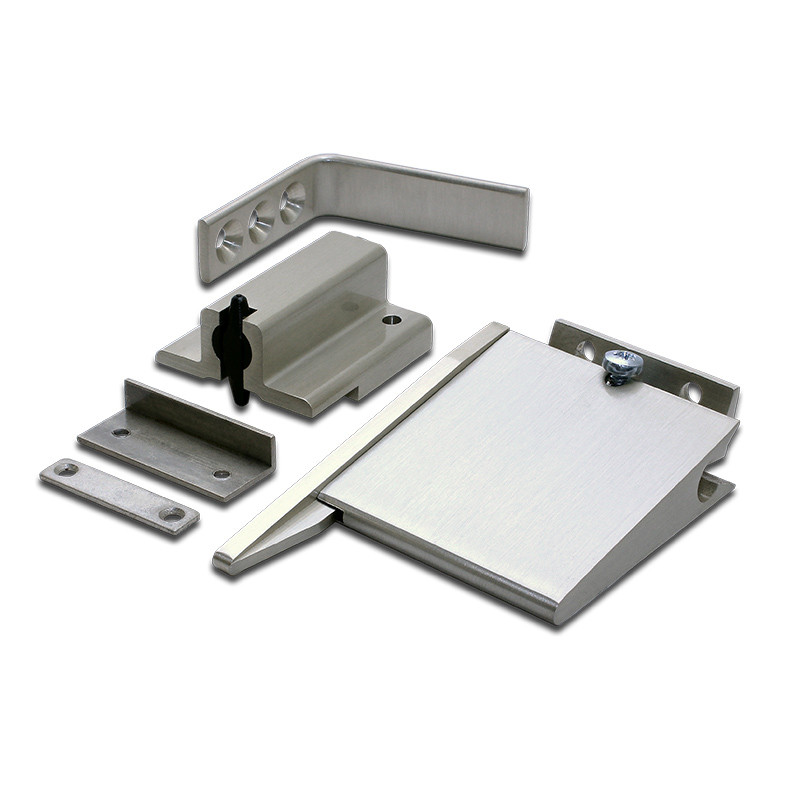

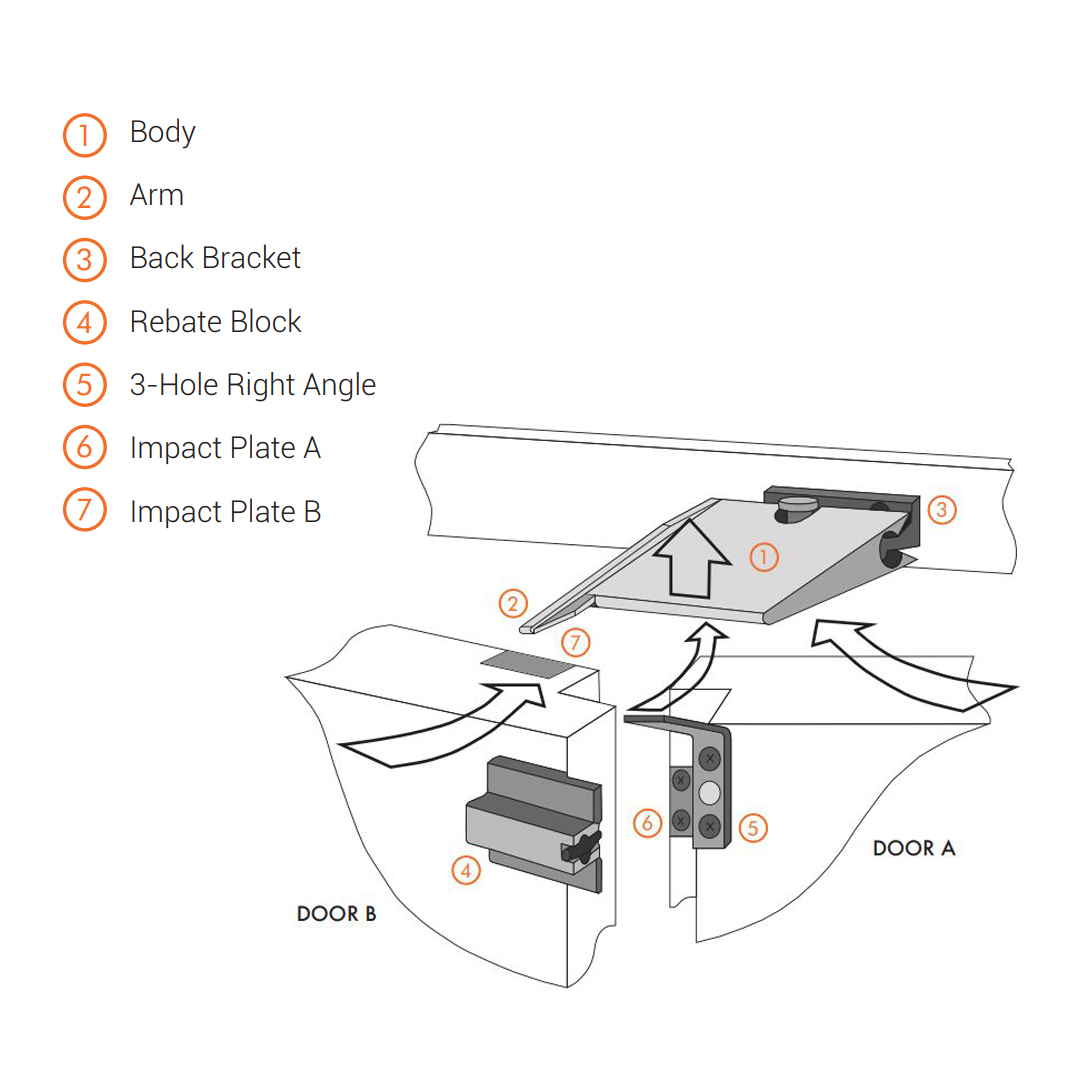

All standard MK2 Door Coordinators include:
Body with detatchable 102mm arm (longer arms available) • Standard surface mounted rebate catch • Lift Arm • Impact plates and fixing screws • Full fixing instructions

Features

  • Suitable for metal, steel & timber doors
  • Fire door certified
  • Tested in accordance with UL10B (North America) UL10C (Canada)
  • Full CE classification to European standard BS EN1158:1997
  • UKCA marked
  • ANSI/BHMA A156.3 Grade Two for North America and Canada
  • IFC fire testing
  • Weight of door: Up to 120kgs
  • Door closer size: 3-5
  • Width of each leaf: Min. 700mm – Max. 1000mm
  • Door Thickness: Min. 38mm – Max. 58mm
  • Rebate: Max. 25mm

Finishes

  • SSS

  • PCP

  • SE

  • PB

  • PCB

  • PCW

  • BZ

  • GLD

  • GRY

Standards

Standard MK2 Door Coordinator
Satin Stainless Steel
Product code: PWMK2-1
£141.52
£117.93 Ex. VAT
Each
Standard MK2 Door Coordinator
Polished Chrome Plate
Product code: PWMK2-11
£141.52
£117.93 Ex. VAT
Each
Standard MK2 Door Coordinator
Silver
Product code: PWMK2-17
£95.59
£79.66 Ex. VAT
Each
Standard MK2 Door Coordinator
Polished Brass
Product code: PWMK2-6
£155.52
£129.60 Ex. VAT
Each
Standard MK2 Door Coordinator
Matt Black
Product code: PWMK2-14
£118.27
£98.56 Ex. VAT
Each
Standard MK2 Door Coordinator
Matt White
Product code: PWMK2-15
£118.27
£98.56 Ex. VAT
Each
Standard MK2 Door Coordinator
Bronze
Product code: PWMK2-19
£157.25
£131.04 Ex. VAT
Each
Standard MK2 Door Coordinator
Gold
Product code: PWMK2-18
£122.50
£102.08 Ex. VAT
Each
Standard MK2 Door Coordinator
Grey
Product code: PWMK2-21
£118.27
£98.56 Ex. VAT
Each
